It’s live! VK3RWB is officially on Air!

VK3RWB Warrnambool Analog Repeater
Access
Tx Frequency: 438.400Mhz
Rx Frequency: 431.400Mhz
Tone 91.5hz

THANKS

A massive thank you go’s out to Sam (VK3FST) for all his hard work and research on setting up, running and maintaining this amazing repeater, it’s working far better than expected

A thankyou to both The Warrnambool Men’s Shed and the members of the Warrnambool Men’s Shed Radio Group for their assistance both in making this amazing repeater possible.

A thankyou to Amateur Radio Victoria (A.R.V) for help coordinating the Frequency Assignment and supplying some radio hardware

And many thanks to the others that have supplied hardware for this repeater

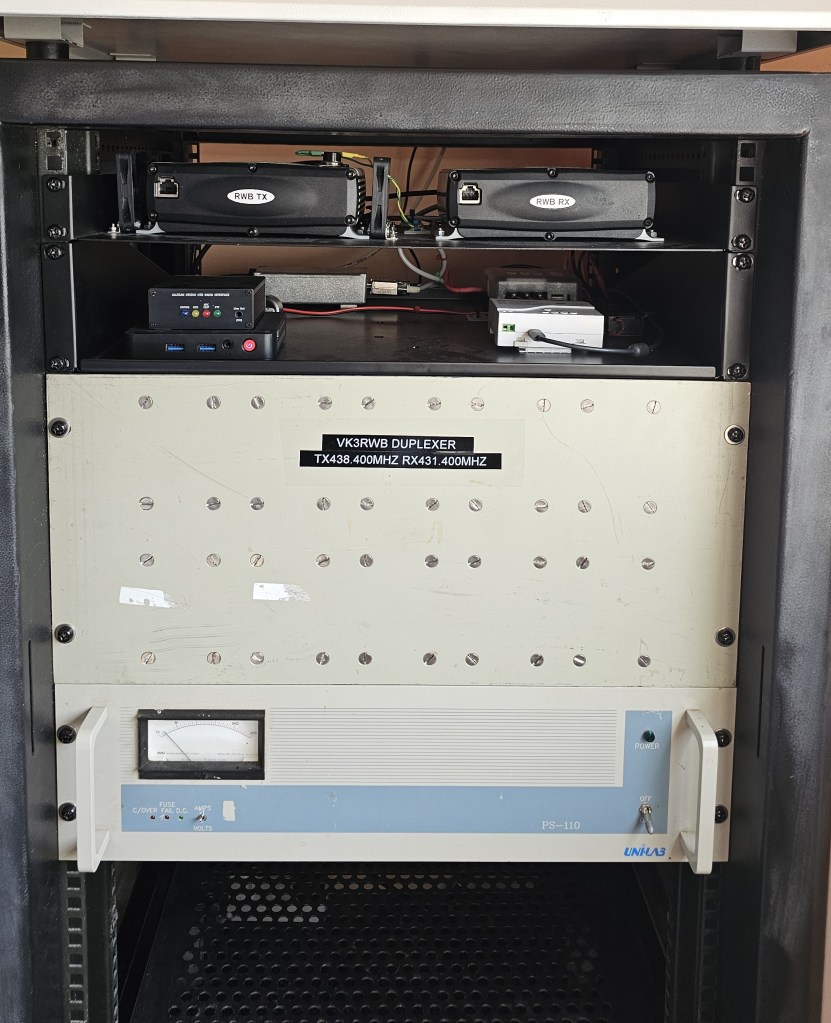

Setup/Hardware summary

2x Simoco SRM9000’s running about 15 watts to the antenna
A Allscan URI200 Radio Interface
A Beelink T5 mini PC running the Repeater software
A Polar 2x5CI3-3 Band Pass Duplexer
A UNI-LAB PS-110 Power Supply
Plus more
