It’s live! VK3RWB is officially on Air!

VK3RWB Warrnambool Analog Repeater
Access
Tx Frequency: 438.400Mhz
Rx Frequency: 431.400Mhz
Tone 91.5hz
Allstarlink access – Node 63042 VK3RWB HUB
Echolink access – VK3RWB-R

THANKS

A massive thank you to Sam (VK3FST) for all his hard work and research on setting up, running and maintaining this amazing repeater, it’s working far better than expected

A thankyou to both The Warrnambool Men’s Shed and the members of the Warrnambool Men’s Shed Radio Group for their assistance both in making this amazing repeater possible.

A thankyou to Amateur Radio Victoria (A.R.V) for help coordinating the Frequency Assignment

And many thanks to the others that have supplied hardware for this repeater

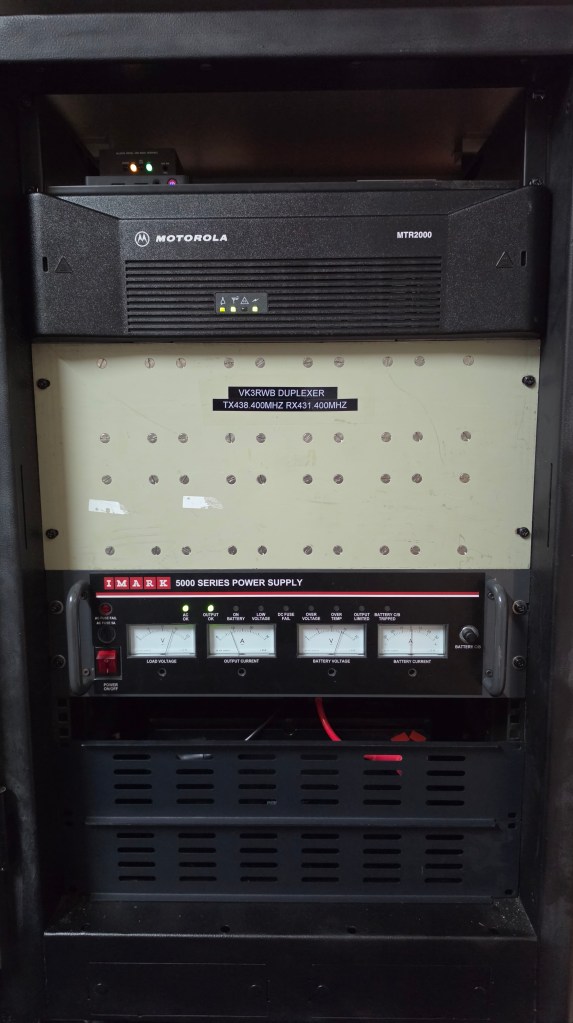

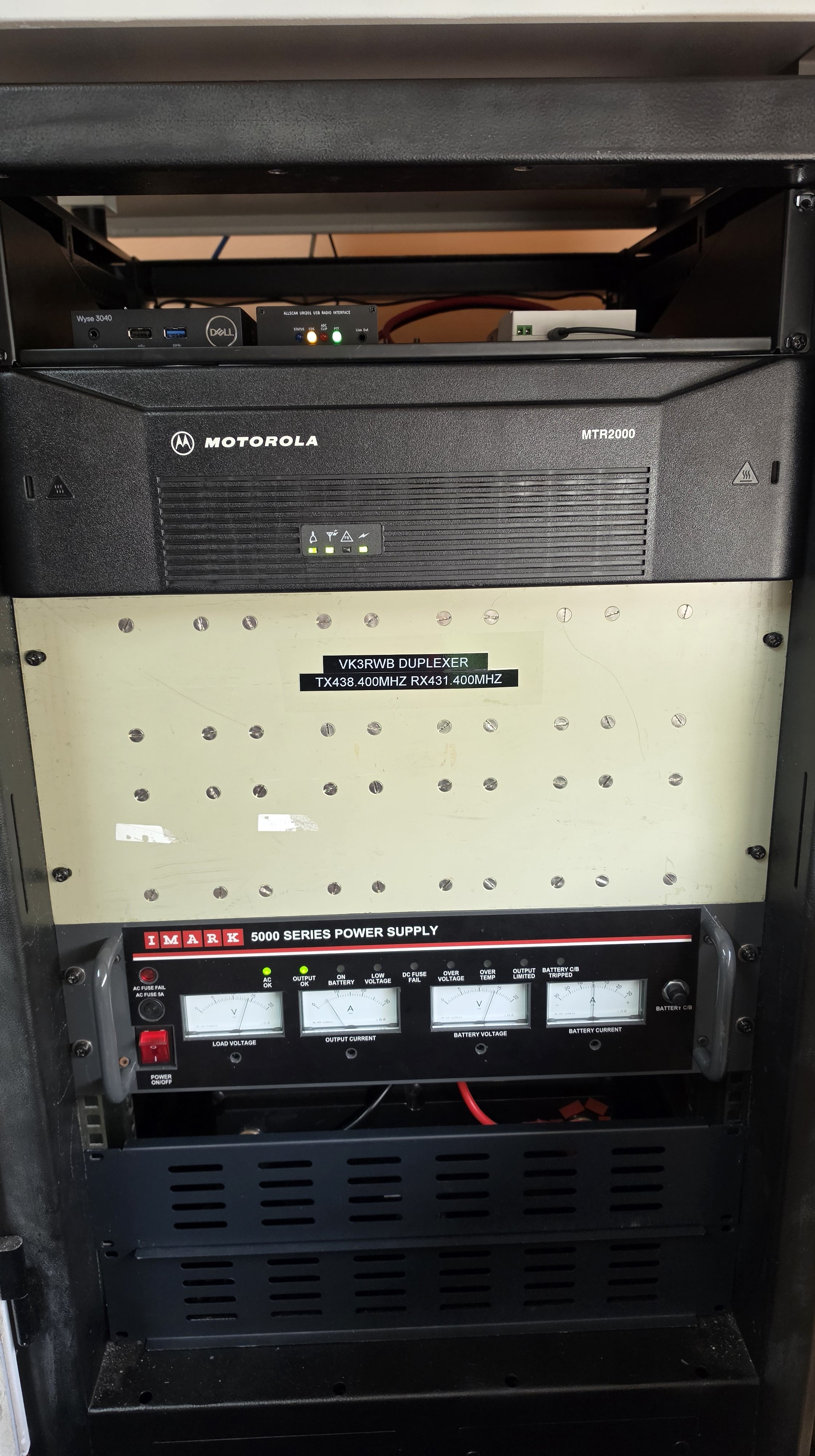

Setup/Hardware summary

A Motorola MTR2000 running at about 25 watts
A Allscan URI201 Radio Interface
A Beelink T5 mini PC running the Repeater and allstarlink software
A Polar 2x5CI3-3 Band Pass Duplexer
A IMARK 5000 series Power supply
A 100AH Backup Battery System
Plus more
